Process System Skid

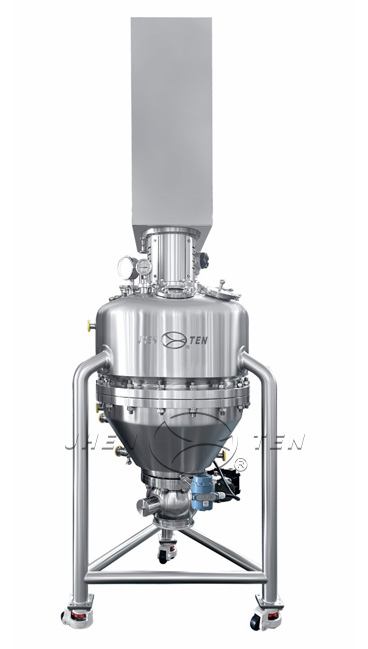

Conical Bottom Agitated Filter Dryer

Conical Bottom Agitated Filter Dryer

Model: JTNB-T

Brand: JHENTEN

Detail Description

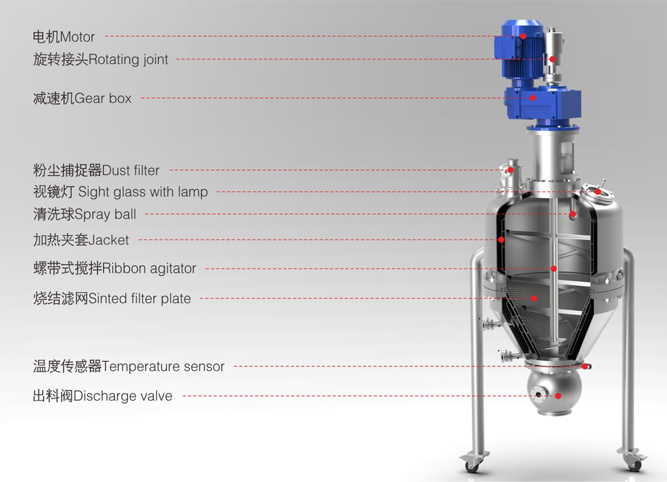

ADVANTAGE

◆Excellentproduct discharge performance with negligible product hold-up due to theconical bottom,
◆Close agitator to wall /bottomclearances and a unique agitator
design.
◆Theagitator permits uniform mixing of the entire product mass, without theformation of lumps or balls. The slow rotation of the agitator minimizes theshear forces applied to the product, thus limiting mechanical and thermalproduct degradation, maintaining the products original crystal structure.
◆The surface area for heattransfer is maximized for optimum
performance and cycle times.
◆In compliance with cGMP andFDA guidelines, also in aseptic
/steam sterilizable versions:
◆Agitatorsupported by the top head, with the seal in contact with the vapors only.
◆Entirely welded agitatordesign, without any bolts, with all edges
rounded for good cleanability.
◆Excellentcleanability using CIP Systems, with simple validation process.



 FEATURES

Design Code

GB/ASME/PED/AD2000 etc.

Product volume

135-14000 liters

Operating temperature

-10 to 151°C (15 to 300°F) or per requirements

Operating pressure

-1 to +6 bar (g) (FV to90 psig) or per requirements

Product wetted material

Stainless steels,Duplexstainless,  Nickel based alloys such asHastelloy C22/C276, Titanium, etc.,

Sealing materials

PTFE gaskets, O-Rings inFFKM or FEP encapsulated

Area classification

GB/ATEX/UL/GOST

Heated areas

All product wettedcomponents,dust collector, including agitator shaft and blades

Accessories

 Dust filterwith automatic backcleaning, sampling valve,CIP system, sightglass with lamp,vacuum system with condenser, heating and cooling unit etc.

Controls

Control cabinet, HMI,MCC, interface for DCS, can realize computer verification.

Documents

DQ,IQ,OQ,PQOperate manual,DQ,IQ,OQ,PQ




SELECTION FORM

 Model

Diameter (mm)

Filter area (m2)

Full volume
(m3)

Equipment width
 (mm)

Totalheight of equipment
(mm)

Motor power
 (kw)

Equipment net weight
(T)

JTNB-T550

550

0.4

0.135

750

1850

According to the
nature of the material,
choose between 3-55KW

0.7

JTNB-T700

700

0.7

0.32

1100

2500

1

JTNB-T1000

1000

1.4

0.87

1280

2850

2.3

JTNB-T1200

1200

2.1

1.5

1630

3500

2.7

JTNB-T1400

1400

3

2.5

1850

4150

3.5

JTNB-T1600

1600

3.8

3

1900

4200

4.3

JTNB-T1800

1800

4.8

5

2300

4800

5.7

JTNB-T2000

2000

6.1

6.2

2500

5800

8.4

JTNB-T2200

2200

7.3

8.5

2700

6300

10

JTNB-T2400

2400

8.8

10.8

3000

6800

13.6

JTNB-T2600

2600

10.2

14

3200

7200

17

Note: Equipment of different specifications can be designed according tothe special needs of users.
