Emulsification tank

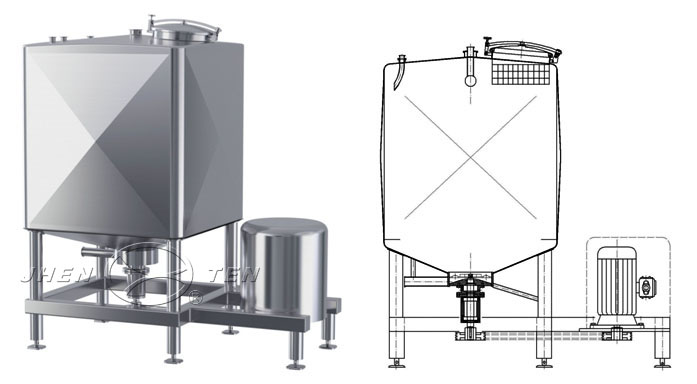

High Shear Emulsification Tank

High Shear Emulsification Tank

Model: JTRGR

Brand: JHENTEN

The JTRRG Emulsification Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.

Detail Description


The JTRRG Emulsification Tank be designed, manufactured and inspected in accordance with the pressure vessel standard(GB150-2011) and the steel welded atmospheric pressure vessel standard(NB/T 47003.1-2009) , strictly meet to GMP certificate requirements.
Square High Shear Emulsification Tank use square single layer stainless steel,and the inner wall of the tank body is made of circular transition, , no dead corner, easy to clean;and the bottom with mechanical emulsification.
Tank body and bottom head of Square High Shear Emulsification Tank can be equiped with an insulation layer according to the customers' requirements.

Tank optional configuration

Square High Shear Emulsification Tank optional configuration: sterile air filter, thermometer (digital display type or dial), sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, sterile sampling valve (stainless steel tank bottom), the liquid level meter and liquid level self-control system (bearing module, non-contact ultrasonic, static pressure transmitting device), etc., or configured according to customers’ requirements.



Application:
? Suitable for food (milk), beverage,biotechnology, pharmaceutical, fine chemicals, pigment etc .mixed liquid and mixture in the tank is full and rapid mixing, dispersion, emulsification, homogenization.


Feature
? There are 600L~5000L varietys of specifications, it can be designed, customized according to the customers' requirements.
? Connector use fast installation chuck(clamp), inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.
? Square High Shear Emulsification Tank use mechanical emulsification at bottom, adopt claw type occlusion, double suck material structure; high speed mixing and emulsification, can be suitable for different mixture, mixing, dispersion, emulsification, homogenization.
? Emulsification shaft seal use sanitary mechanical seal, emulsification motor can use planet-cycloid retarder, stepless reducer according to the customers' requirements .


Design Parameter

Designpressure

ATM

Designtemperature

Accordingto the customers' requirements(0℃~160℃)


Material

Innertank

304、316L

Insulationlayer

Rockwool ( keep warm ) or PU ( keep cool )

Feet

304


Surface Finish

Finishtype

Mechanical polishing, electrolyticpolishing,
Sand blasting

Polishingprecision

Inner surface Ra≤0.4μm,
Outer surface Ra≤0.6μm


Connection

In-outlet

Tri-clamp, flange


Normal Model And MainTechnical Parameters

Parameters

Model

JTRGR—1000

JTRGR—2000

JTRGR—3000

JTRGR—4000

Effectivevolume:L

1000

2000

3000

4000

Barrel

Lengthand width:mm

1100

1300

1450

1600

height:mm

800

1200

1400

1500

Emulsification

Motor power:kW

18.5

22

30

37

EmulsificationRPM

1500

The above-mentioned data is thestandard ,for reference only. it can customize according to customer'srequirements.
